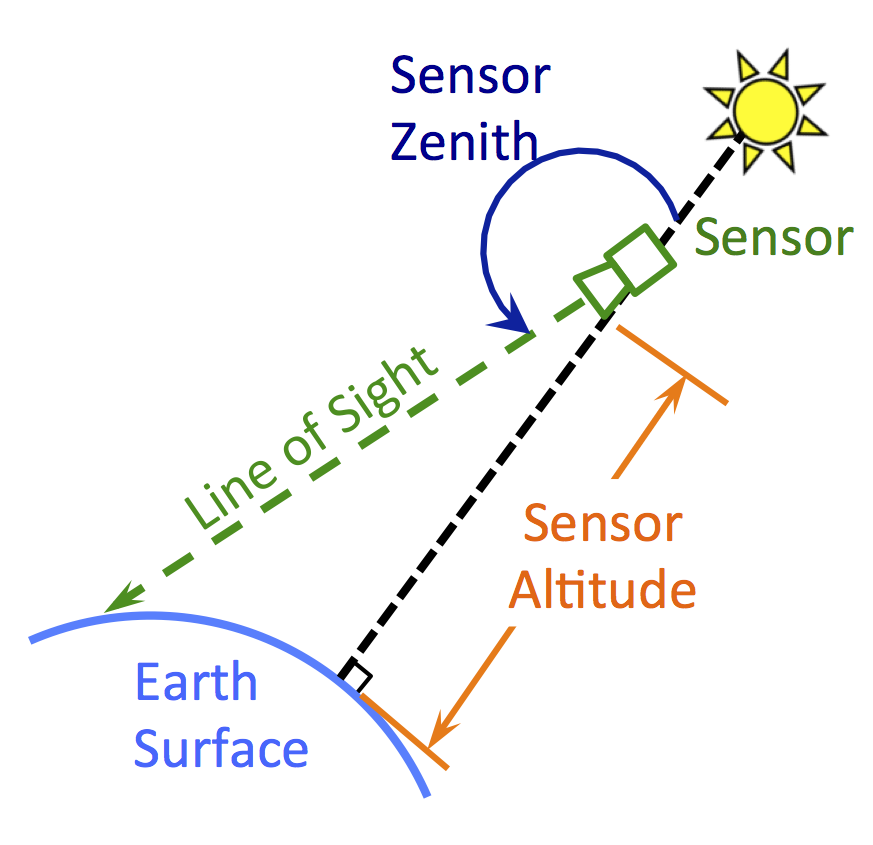

Figure 1 shows a schematic that includes the definition of the sensor zenith and altitude. Note that the solar zenith angle is fixed at 0 deg (directly over the sensor) in the free version of the MODTRAN® web app.
Figure 1. Schematic of geometric description in the MODTRAN® web app.
